Even
if it is -
seemingly -
easy to copy -
here is the
better
original.
See
for yourself -
or you will
remember this
during
assembly...
You
can, of
course, ask
the question
of whether a
new 45-year
old VHF device
should
be
equipped with
new RCA
sockets.
But
take a look at
the structure
of the tuner:
This
rather gives
the impression
of being a
carefully
designed
measuring
instrument
than a "radio
part" for the
stereo system.
And that is
why this
device is
worth
receiving new
RCA sockets.
|
The upper
trace is the
left channel ,
the lower
trace is
the
right channel
Left depicted
is the
"power on
peak" + 5,5V,
right "power
off"
hump
transient -
1,8V
vertical scale
is
2V
/ div.
|
|
|
The
Pievox
A76_Mute
switch-on
delay avoids
the "crack"
when switching
on and mutes
immediately
when switched
off.
Installation
is not
difficult as
the parts are
ready for
installation.
An
installation
report for the
A76_Mute
module can be
called up in
advance here:
Still only in
German
language but
pictures are
international
...
https://www.pievox.de/Einbau_A76_Mute.pdf
If you have
the Revox A76
ever "on the
table" it is
also advised,
to replace the
after about 45
years mostly
oxidized
antenna
socket.
This is not
only an
aesthetic
issue, the
silver oxide
does not
conduct the
current
as well as one
from relay -
and other
switch
contacts is
known.
In
short:
"Good jacks do
not make the
sound better,
but bad jacks
make it
worse."

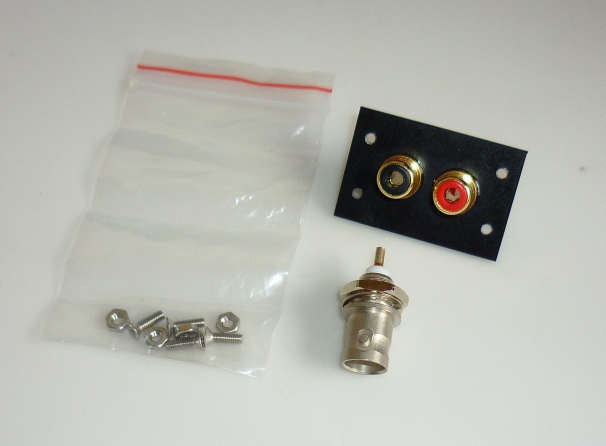

What
you get
ready
to install
A76_mute
module with
mounting
hardware

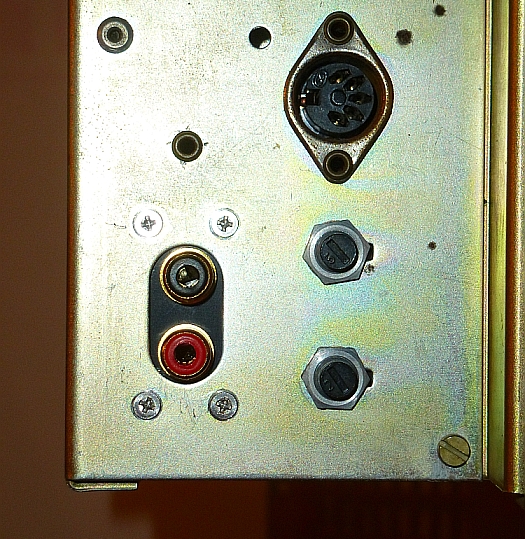

Spare sockets
RCA /Cinch
replacement
and BNC for
antenna plug

A76 with new
Pievox sockets
Sets
for other
Revox devices
- now for
Revox B77 and
A77 and A50 /
A78 amplifier
are
available.
Further sets
are in
preparation -
or on request.
The
main advantage
of this Pievox-set
is,
that here the
replacement of
the bushings
can be
mounted
without great
mechanical
work as they
fit 1:1 into
the devices
cutout.
An
installation
report can be
called up in
advance here:
Still only in
German
language but
pictures are
international
....
http://www.pievox.de/Einbau_Neue_Cinch_A76.html
The
fastening is
by screws -
No
blind rivets,
which require
the possession
of this tool
and is also
somewhat
"a
little fiddly"
in the
application to
fix the plate
in the perfect
position of
the bushes
in
the cutout.
For this you
would need
four hands.
In the
selected
method with
countersunk
head screws,
the sockets
automatically
pull
into
the correct
position in
the cutout.
Without a
doubt a very
pleasant.
The
sockets are
ready mounted
and are
secured
against
loosening.
The sockets
are secured
against turn
movement using
a strong
industrial
glue agent.
So also
removing a
tight
connector by
turn out will
not loose the
RCA socket
screw-nut!
The
distance of
the sockets is
enhanced to 13
mm,
so the famous
Neutrik cinch
plugs can be
used and there
is also a gap
in between.

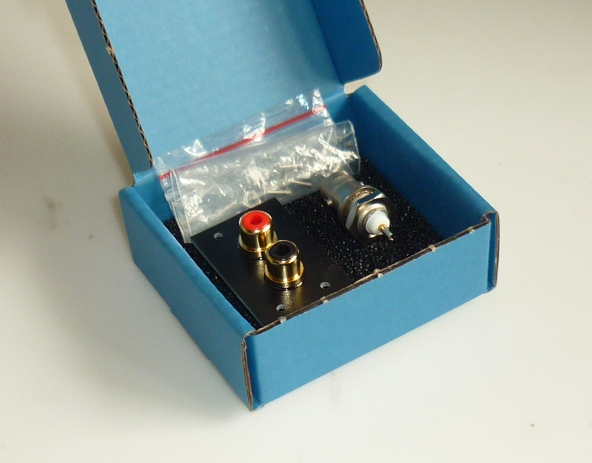

This
offer
contains:
1x
ready
to install PCB
module to
screw on to
the mounting
bolts of the
Cinch / RCA
socket
1x
pcb with 2
mounted and
secured cinch
/ RCA sockets
including
sunk head
screws
mounting
hardware
1x
BNC antenna
socket
Cinch
/ RCA Sockets
with
mounting
hardware
A76
back with
Neutrik cinch
/RCA
Technical details
in short
Muting
delay on power
on 2..3
sec , instant
muting on
"power off"
Socket
plate
dimensions
identical to
the original -
Revox
connector
plate.
Socket
mounting plate
1,5 mm GFK
Epoxid,
coloured black
throughout the
mass
- not painted.
The sockets
are industrial
quality and
goldplated.
BNC antenna
socket inner
conductor goldplated
Hardware
V2A inox
Version
2018_0728_D
|
